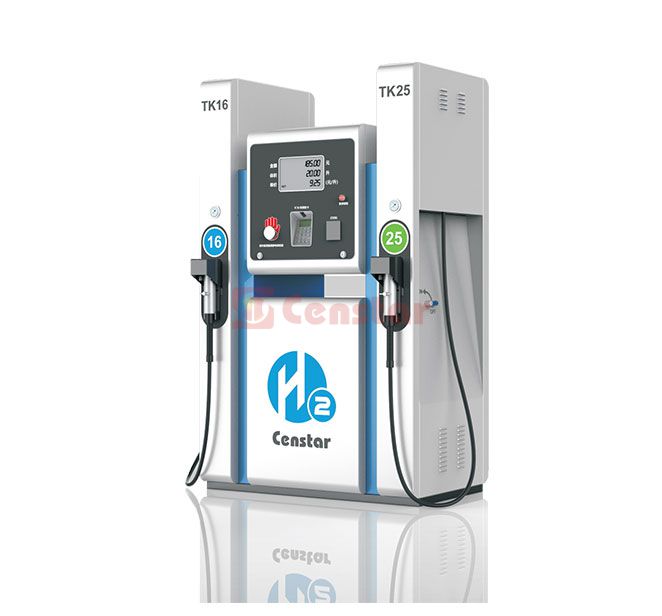

H2 dispenser
- H2 Dispenser features
- Anti-explosion certificate
- Fueling with function of automatic control of flow, quantitative, fixed amount, full -auto stop fueling modes ；
- Infrared communication (only 70MPa dispenser)
- Malfunction judgment and display function;
- Communication linkage with the whole station.
Easy ways to get the answers you need.Send Email [email protected]
Description
H2 Dispenser Main features
1、Anti-explosion certificate;
2、Fueling with function of automatic control of flow, quantitative, fixed amount, full -auto stop fueling modes ;
3、Infrared communication (only 70MPa dispenser)
4、IC card management system, compatible with charge & management system of gas station, CNG/LNG station.
5、 Pressure-limiting protection, break protection, emergency cut off ;
6、Malfunction judgment and display function;
7、Communication linkage with the whole station.
Parameter
H2 Dispenser Parameters
| Item | Data | |
| Rated Pressure | 35 MPa | 70MPa |
| Max. Pressure | 43.8MPa | 87.5MPa |
| Fueling rate | 0～3.6 kg/min | 0～3.6 kg/min |
| Accuracy | ±2.5% | ±2.5% |
| Filter accuracy | 5～10μm | 5～10μm |
| Environmental temperature | -25℃～+55℃ | -25℃～+55℃ |
| Power | AC (187~242)V，50Hz±1Hz | AC (187~242)V，50Hz±1Hz |
| ATEX | ExdeibmbⅡCT4 Gb | ExdeibmbⅡCT4 Gb |
