Censtar Diesel Exhaust Fluid Filling Equipment (AdBlue Filling Machine)
Censtar Diesel Exhaust Fluid Filling Equipment (AdBlue Filling Machine)2
Censtar Diesel Exhaust Fluid Filling Equipment (AdBlue Filling Machine)1

Censtar Diesel Exhaust Fluid Filling Equipment (AdBlue Filling Machine)

AdBlue Filling Machine type
Censtar single-nozzle AdBlue filling dispenser for vehicles
Censtar three-nozzle diesel-adblue filling dispenser
Filling dispenser + 1M3(IBC) container
Filling dispenser + 3M3container
Filling dispenser + 10 / 20M3 buried container
Easy ways to get the answers you need.Send Email [email protected]

Description

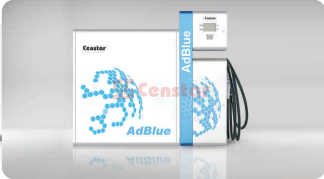

Censtar single-nozzle AdBlue filling dispenser for vehicles


• Explosion-proof structure design conforming to refueling machine standard

• Emergency stop switch on both sides of the filling machine for emergencies

• Single-nozzle type, measuring accuracy of complete machine: ± 0.3%, maximum flow rate: 40L / min

• Overall dimensions: 500mmx550mmxl650mm (width x thickness x height)

• With the same control system as the refueling machine, it supports filling in fixed amount, quantitative or non-quantitative filling. Filling modes can be selected through the keyboard, which is convenient for customers to operate.

• It supports 1C card, cash payment, ticket printer, voice prompt / intercom (optional)

• It can record the volume and amount of each transaction, and inquire historical data

• It can be directly connected to the zero pipe system of group customers to realize data upload and remote inquiry.

• It is applicable to the service of AdBlue filling at the fuel station, and it is placed close to the refueling machine, and take power from the adjacent refueling machine.

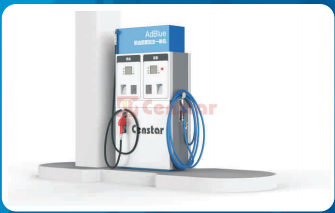

Censtar three-nozzle diesel-adblue filling dispenser


• Explosion-proof structure design conforming to refueling machine standard

• Emergency stop switch on both sides of the diesel-urea filling machine for emergencies

• Three-nozzle type, measuring accuracy of complete machine ± 0.3%, maximum flow rate 40L / min

• Overall dimension: 900mmx550mmx2380mm (width x thickness x height)

• With the same control system as the refueling machine, it supports filling in fixed amount, quantitative or non-quantitative filling. Filling modes can be selected through the keyboard, which is convenient for customers to operate.

• It supports 1C card, cash payment, ticket printer, voice prompt / intercom

• It can record the volume and amount of each transaction, and inquire historical data

• It can be directly connected to the zero pipe system of group customer

Parameter

Filling dispenser + 1M3(IBC) container


The filling machine is skid-mounted with the container, which occupies a small area and is easy to install

Low level alarm

Anti-idling protection function

Installation requirements: AC 220V power supply, 1 piece of TCP / IP communication network line

Operating temperature range: -11 ℃ ~ 55 ℃

Applicable to fuel stations and special fleets (public transportation / postal service / sanitation) with sales of vehicle urea below 5 tons / month, etc

Refueling mode: replace the IBC container as a whole

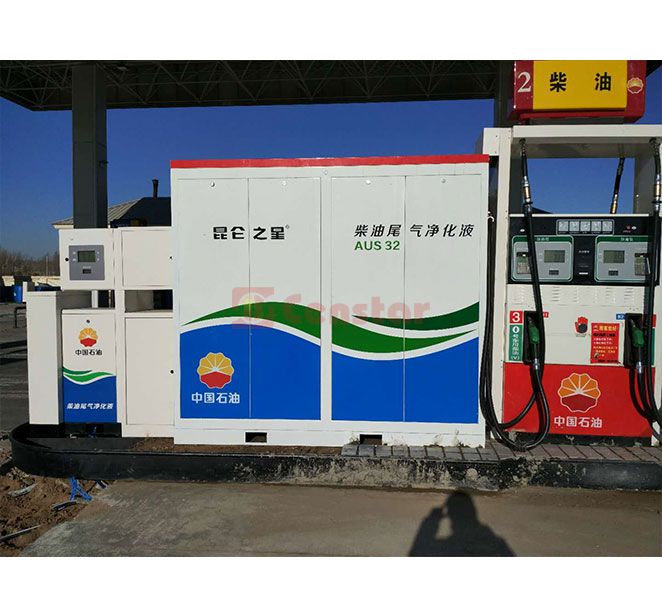

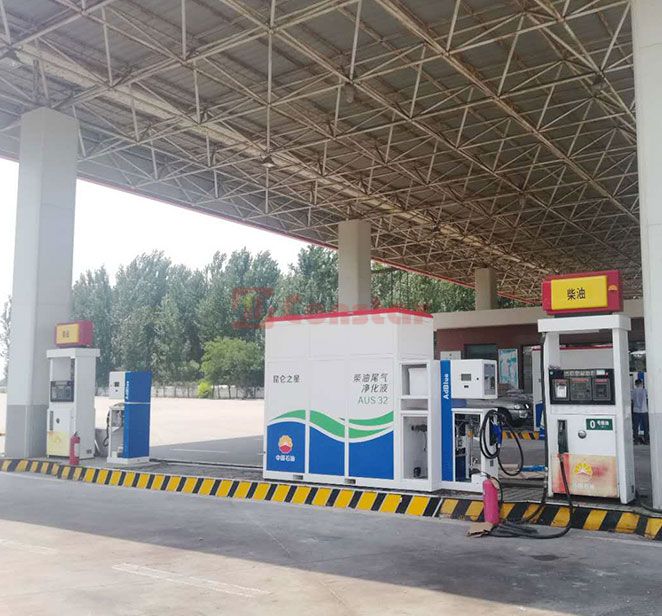

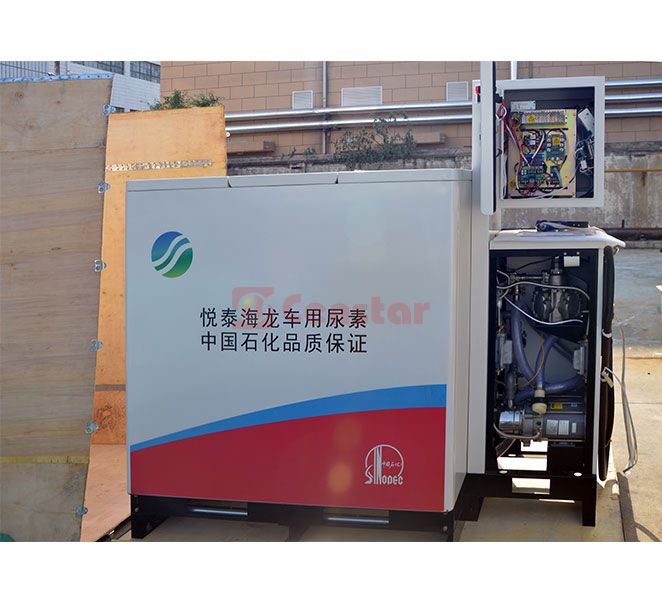

Filling dispenser + 3M3 container


Double-layer container, sun-proof, dust-proof, leak-proof, advertising wall, it can double as an advertising wall

Volume of the container: 3 cubic meters (3 tons)

The container is equipped with a special submersible pump, liquid level meter, high level alarm meter and liquid level display, and a complete set of domestic refueling system.

The filling machine and the container can be skid-mounted in one piece or arranged separately

Installation requirements: AC 220V power supply, 1 piece of TCP / IP communication network line

Operating temperature range: -25 ℃ ~ 55 ℃

Applicable to fuel stations and large fleets with sales of vehicle adblue 5~10 tons / month, etc

Refueling mode: extracting from 1000L container

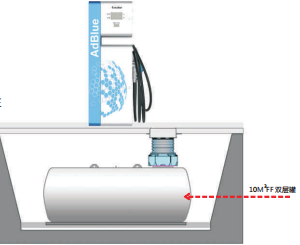

Filling dispenser + 10 / 20M3 buried container


10M³FF double-layer container

Good anti-freezing and heat preservation effect, large capacity, low allocated transportation cost

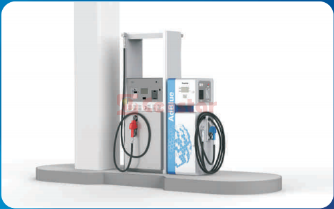

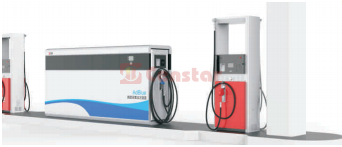

Single-nozzle filling machine and refueling machine can be placed side by side to complete filling of diesel and adblue at one time

Diesel-AdBlue all-in-one machine may also be used to maintain the original image of the fuel station.

Imported special submersible pump and vehicle adblue liquid level meter are adopted, and independent external liquid discharging port is set up

Installation requirements: AC 220V power supply, 1 piece of TCP / IP communication network line

Operating temperature range: -30 ℃ ~ 55 ℃

Applicable to fuel stations with sales of vehicle adblue over 10 tons / month, etc

Refueling mode: extracting from 1000L container or tank car


Technical Parameters of Diesel Exhaust Fluid Filling Equipment


Ambient temperature
-25 ℃ ~ 55 ℃Humidity≤ 95%
Power adaptabilityAC 220 V (+ 10%, -15%) 50Hz or AC 380 VAC 50 Hz (+ 10%, -15%) 50HzNoise≤ 80d B
Motor1000W (or 750W)Applicable mediumUrea
Flow range(5 ~ 40) L / min
The measured (min.)5 LError≤ ± 0.3%
Explosion-proof gradeIntrinsically safe and explosion-proof, explosion-proof sign ExibdmeIIAt3Ambient pressure86 ~ 110k Pa
Measuring rangeUnit price: 0 ~ 99. 00 yuan / L;
Preset range: 0 ~ 9999. 00 yuan;
Measuring range for single refueling: amount 0 ~ 9999.00 yuan; volume 0 ~ 42949672.95L;
Measuring range for accumulative refueling: amount 0 ~ 42949672.95 yuan; volume: 0 ~ 42949672.95 L
