Censtar Classic M Series Fuel Dispenser
Censtar Classic M Series Fuel Dispenser

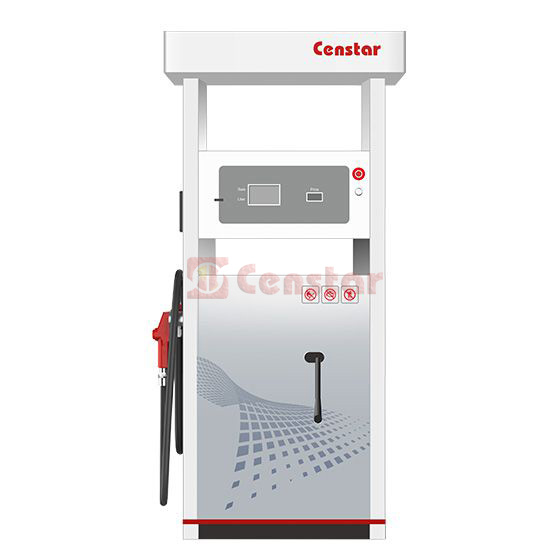

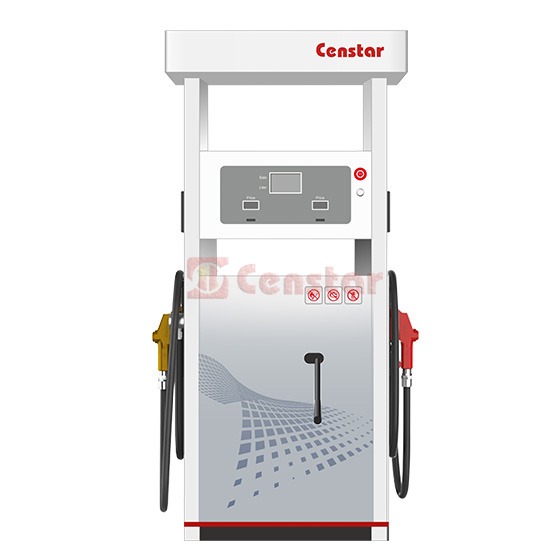

Censtar Classic-M Series Fuel Dispenser

Fuel Dispenser Available Options
International Solenoid Valve
Breakaway and Swivel
IC Card Payment Terminal
English Receipt Printer
Stainless Steel Arm Side and Canopy
Easy ways to get the answers you need.Send Email [email protected]

Description

Product Configuration

Suction Type - Standard

Basic Configuration: OPW Nozzle, OPW Swivel, XFY Hose, OPW Breakaway Valve, 220V Sida Motor, Bartec Nozzle Switch, PS-100 Pulser, CSP03 Gear Pump, LLJ10 Flow Meter, 0810 Washable Filter, Chunhui Solenoid Valve, Emergency Stop Button, Censtar Electrical Control Unit.

Dispenser Type - Standard

Basic Configuration: OPW Nozzle, OPW Swivel, XFY Hose, OPW Breakaway Valve, Bartec Nozzle Switch, PS-100 Pulser, LLJ10 Flow Meter, 0810 Washable Filter; Chunhui Solenoid Valve, Emergency Stop Button, Cesnstar Electrical Control Unit.

Vapor Recovery System - Standard

OPW Vapor Recovery Nozzle, OPW Vapor

Recovery Breakaway Valve, OPW Vapor Recovery Hose, NP Vapor Recovery Pump, NP Vapor Recovery Control Boards.

Option

Printer, Electrostatic Release Device, Voice Broadcast Function, Hose Suspension Device, Voice Intercom Device, Video Intercom Device, Bank Card Payment, Barcode Pay, Vapor Recovery Online Monitoring System, Non-inductive Pay, Face Scanning Etc.


HIGH SECURITY SECURED WATERPROOF AND DUSTPROOF

1、6200 Main Board: Latest Electronic Technology, More Safety and Stability

2、Intelligent Voice Broadcast System, Printer Bill System, Full-service Customers

3、Adjustable Display: Brightness can be adjusted according to the light

4、Pos Smart Upgrade Simply Maintenance

5、High-precision Flow Meter: Shell use unique technical processing, moistureproof,rustproof, All the advanced design assure outstanding performance no malfunctionswithin 5,000,000 liters, life-cycle can reach 10,000,000 liters and wide temperatureadoption from-40°C to +55°C.


Parameter



Accuracy: ±0.25%Unit Price: 0.00 to 9999 ( Decimal point position can be chosen)
Flow Rate Range: 5-50L/Min or 8-80L/MinElectrical Totalizer: 0.00 to 99999999.99
Intake Vacuum:> 54KPAElectrical Mechanical Totalizer: 0.00 to 999999
Display:sales 0.00 to 9999999Power Supply: AC380V or AC220V with a changing range from-15% to + 10%
Noise: < 80dB(A)Motor's Output Power: 750W and 1000W
Volume:0.00 to 99999.99Working Environmental Temperature: -40°C to+55°C
